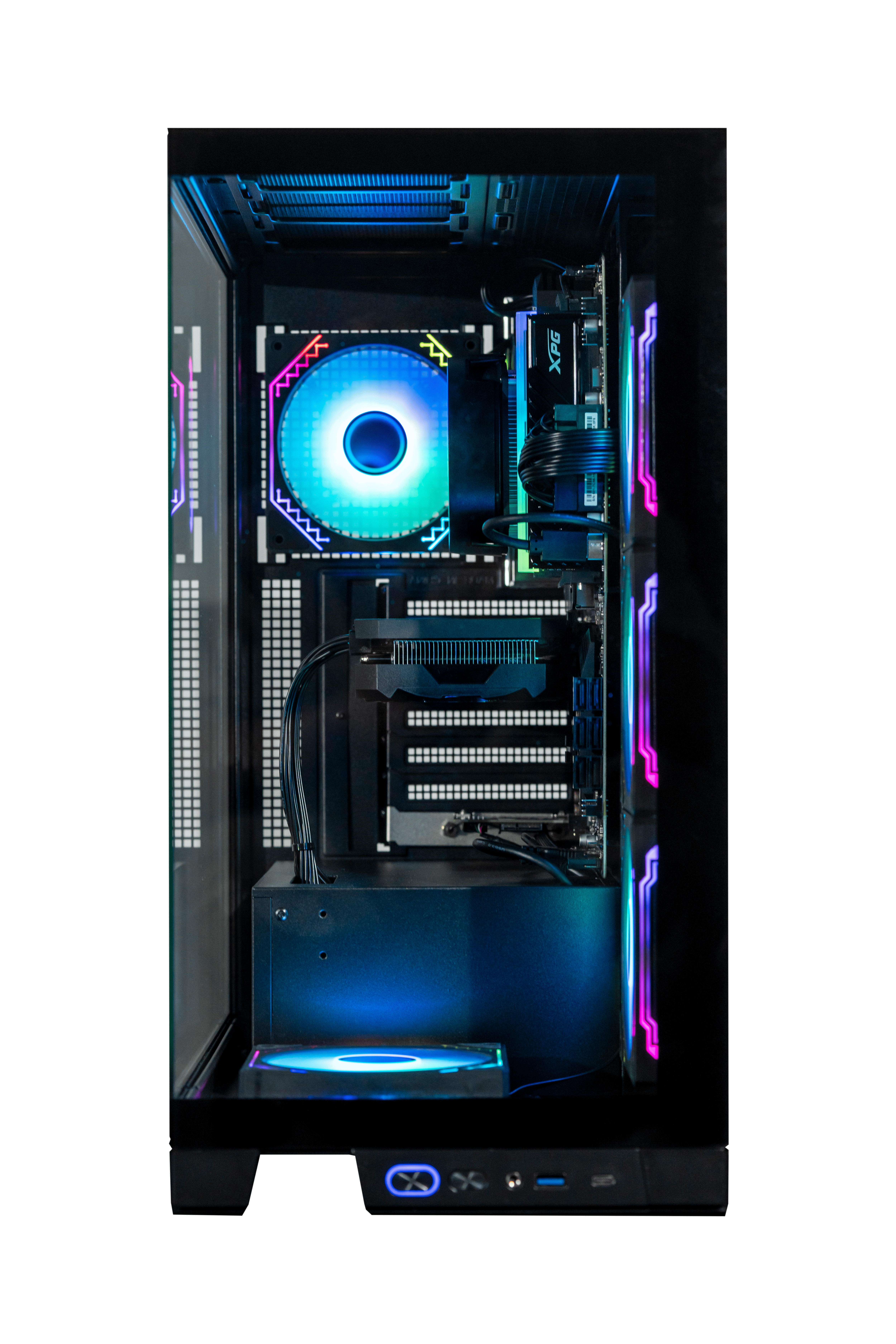

(3) INFINITY SHADOW X FRONT-min

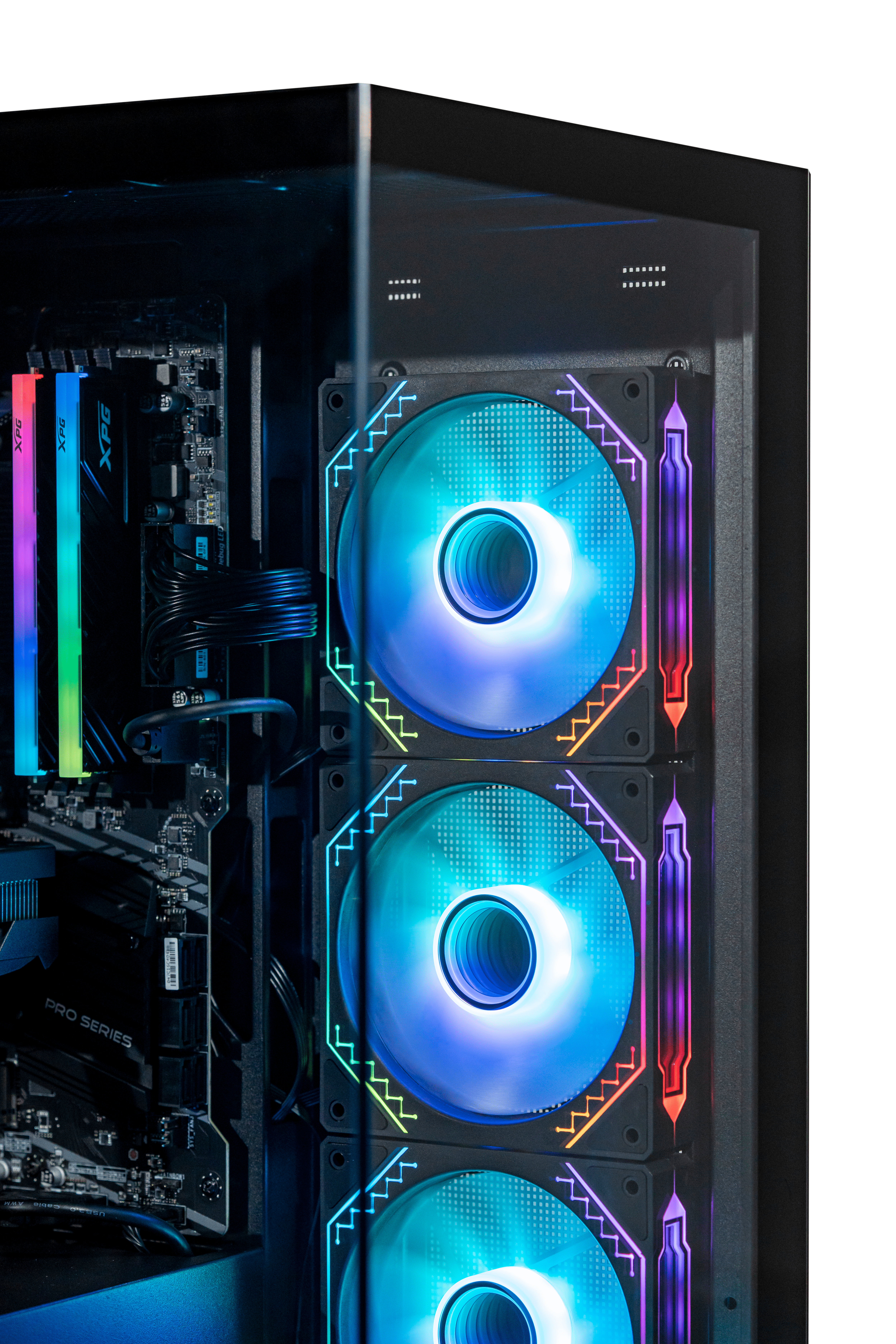

(6) INFINTY SHADOW X RGB FAN CLOSE-min
(9) INFINITY Keyboard_Mouse-min

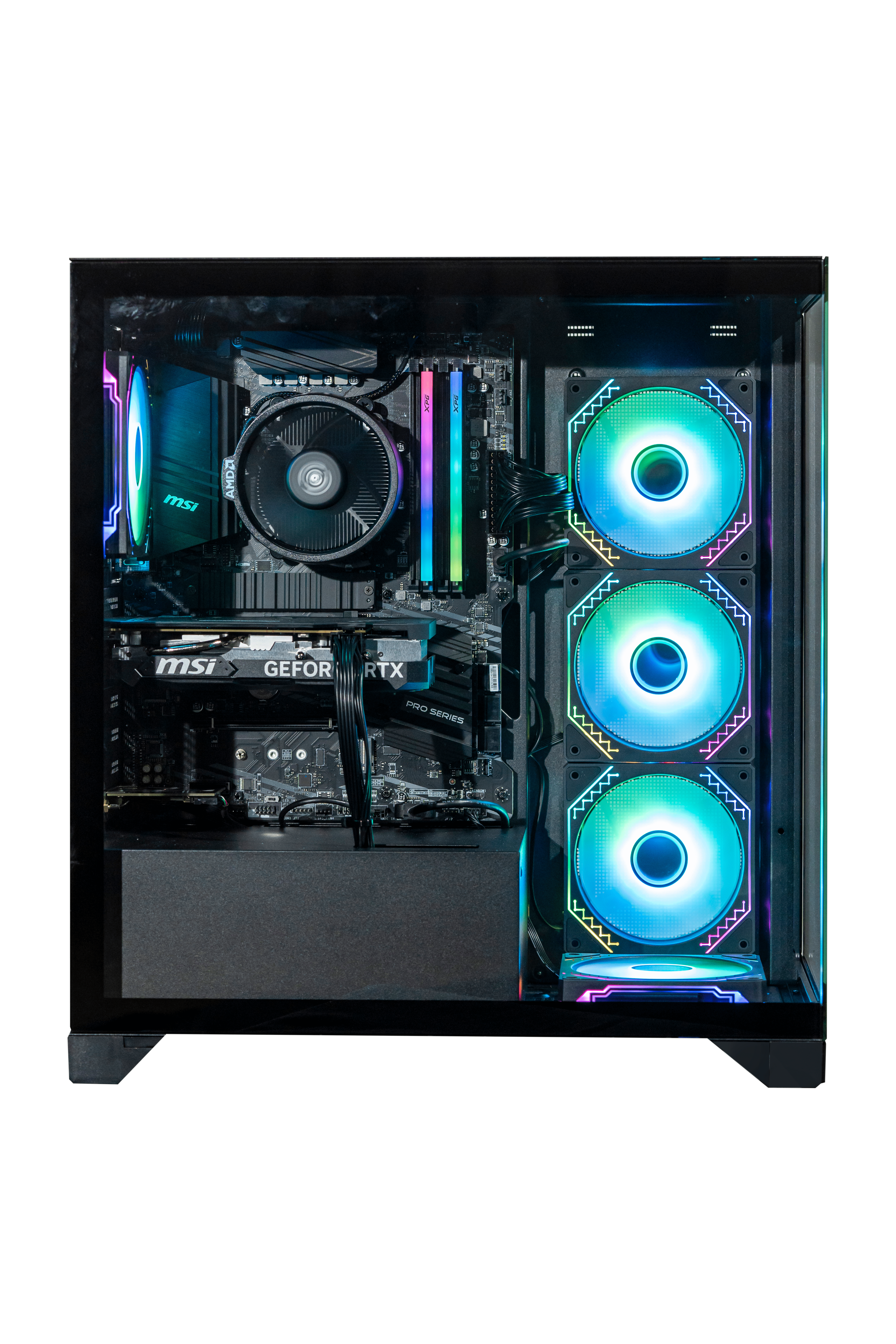

(4) INFINITY SHADOW X SIDE-min

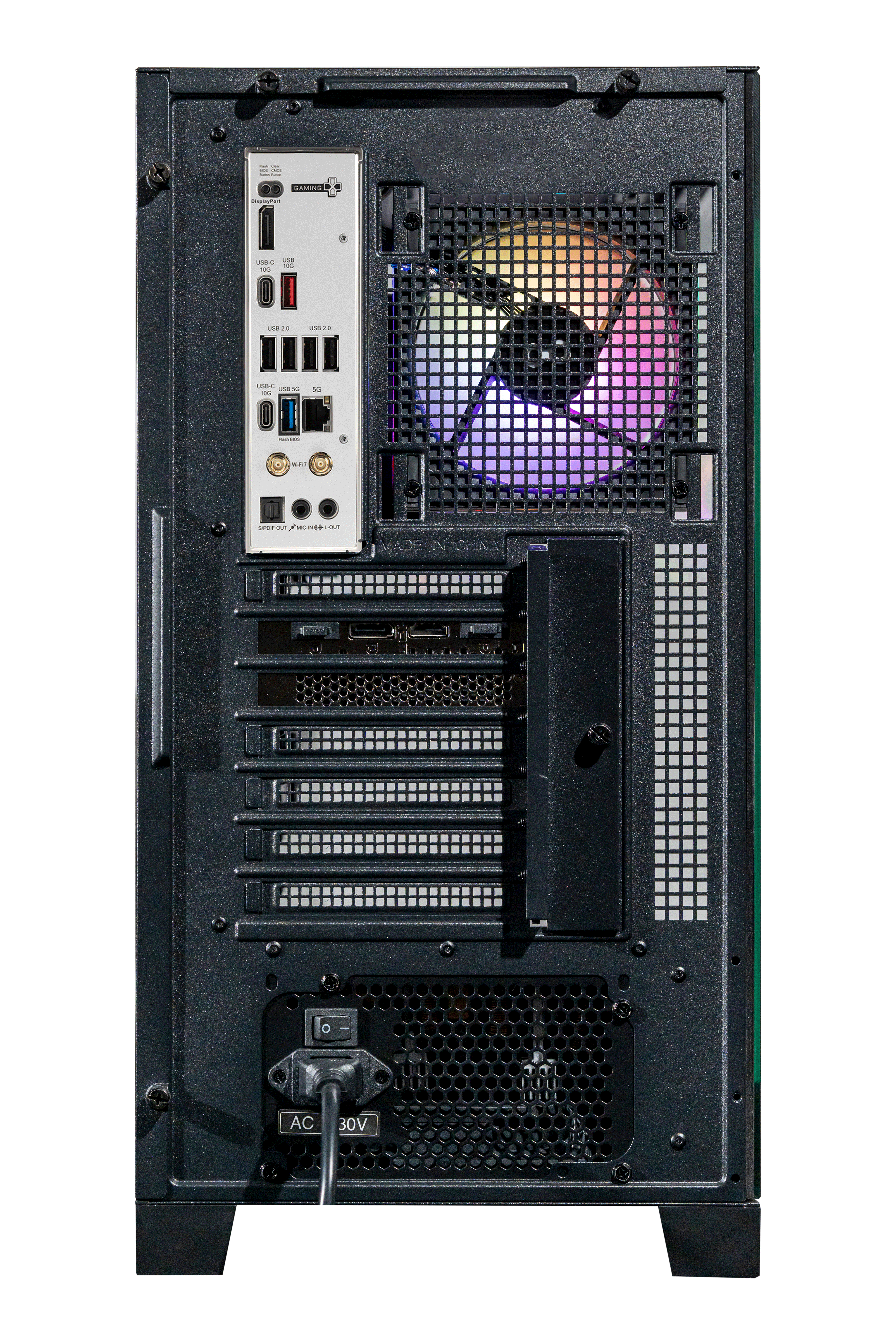

(5)-INFINITY-SHADOW-X-Back-min
(1) INFINITY SHADOW X UNIT ONLY-min

Fastest on the Horizon

Designed for gamers and creators, the Y16 Series delivers stunning visuals, ultra-smooth performance, and high-speed responsiveness. With a vivid display, next-gen power, and advanced cooling, it’s built for those who demand peak performance without compromise.

ELITE GRAPHICS PERFORMANCE

The Infinity Y16 Series is powered by next-gen NVIDIA GeForce RTX 50 Series graphics, unlocking AI-driven enhancements, real-time ray tracing, and high FPS gaming, ensuring ultra-smooth visuals and next-level immersion.

ULTIMATE PROCESSING POWER

Featuring cutting-edge Intel and AMD HX processors, the Y16 Series delivers exceptional speed, responsiveness, and multitasking capabilities, making it the perfect machine for gaming, streaming, and heavy workloads.

NEXT-GEN COOLING TECHNOLOGY

Stay ahead of the competition with the AQUA N Cooler, designed for efficient heat dissipation, high-speed fans, and liquid metal thermal compound, ensuring maximum performance with zero throttling.

LIGHTNING-FAST STORAGE & MEMORY

Load games, applications, and creative projects in seconds with high-speed Gen 4 NVMe SSDs and next-gen DDR5 memory, providing rapid data access, ultra-low latency, and seamless multitasking.

50 SERIES GRAPHICS

The INFINITY Y16 Series redefines performance with the cutting-edge NVIDIA® GeForce RTX™ 50 Series graphics. Engineered for gamers and creators, it delivers next-level speed, AI-enhanced visuals, and seamless multitasking. Whether you're conquering the latest AAA titles, editing high-resolution content, or tackling intensive workloads, the Y16 ensures uncompromised power and breathtaking realism.

MORE CORES, MORE DOMINANCE.

Built for elite gaming and professional workloads, the Intel & AMD HX Processors in the Infinity Y16 Series provide blazing-fast performance. Designed for high-speed workflows, competitive gaming, and intensive multitasking, Delivering instant responsiveness, reducing lag and maximizing efficiency. More cores. More speed. More dominance.

16” WQXGA 300Hz display

The 2560x1600 resolution ensures crisp, sharp, and vibrant imagery, while the 300Hz refresh rate and 3ms response time eliminate ghosting, providing ultra-smooth motion. 100% sRGB color accuracy and 500 nits brightness make it an ideal choice for both gaming and creative work, delivering studio-grade visual fidelity.

WQXGA

16" 2560 x 1600

300 Hz

Refresh Rate

LED

100% RGB / DCI-P3 Colour Space

Cooler. Faster. Stronger

To maintain peak performance, the INFINITY GLOW X Cooler offers an advanced thermal system, ensuring maximum power under heavy loads. The multi-zone thermal management system efficiently dissipates heat, supported by ultra-high-speed fans and liquid metal compound to keep temperatures low. Optimized airflow ensures sustained FPS without throttling, allowing extended gaming sessions without performance drops.

EDGE-TO-EDGE PRECISION

The Infinity Y16 Series features a per-key RGB backlit keyboard with N-Key Rollover (NKRO), ensuring precise and responsive input for both gaming and productivity. Designed for customization and comfort, it offers seamless lighting effects and reliable keystroke accuracy.

The membrane switch design ensures silent yet tactile feedback, making it ideal for both intense gaming sessions and professional workflows. Whether executing rapid in-game commands or handling complex creative tasks, the Y16 keyboard delivers precision, durability, and immersive RGB customization.

TECHNICAL DETAILS

SPECIFICATIONSY16-U9R9BW-999Y16-U9R8BW-999Y16-R9R7TIBW-899
MODEL NAMEINFINITY Y16-U9R9BW-999INFINITY Y16-U9R8BW-999INFINITY Y16-R9R7TIBW-899
PROCESSOR14th Gen Intel® Core™ Ultra 9 Processor 275HX14th Gen Intel® Core™ Ultra 9 Processor 275HXAMD Ryzen™ 9 9955HX
GRAPHICSNVIDIA® GeForce RTX™ 5090P 24GB GDDR7 | dGPU
175 Watt TGP (+ 25 Watt Dynamic Boost)		NVIDIA® GeForce RTX™ 5080P 16GB GDDR7 | dGPU
175 Watt TGP (+ 25 Watt Dynamic Boost)		NVIDIA® GeForce RTX™ 5070Ti 12GB GDDR7 | dGPU
140 Watt TGP (+ 25 Watt Dynamic Boost)
DISPLAY16” 16:10 2560x1600 -300Hz sRGB100%, 500nits16” 16:10 2560x1600 -300Hz sRGB100%, 500nits16” 16:10 2560x1600 -300Hz sRGB100%, 500nits
STORAGE1TB M.2 NVMe PCIe Gen 4 (Read/Write upto 5000/2500) SSD
1/2 Slot Free | M.2 2280 SSD via PCI-e 4.0 x4 (supports RAID 0/1)		1TB M.2 NVMe PCIe Gen 4 (Read/Write upto 5000/2500) SSD
1/2 Slot Free | M.2 2280 SSD via PCI-e 4.0 x4 (supports RAID 0/1)		1TB M.2 NVMe PCIe Gen 4 (Read/Write upto 5000/2500) SSD
1/2 Slot Free | M.2 2280 SSD via PCI-e 4.0 x4 (supports RAID 0/1)
MEMORY16GB DDR5 5600MHz | Max 64GB16GB DDR5 5600MHz | Max 64GB16GB DDR5 5600MHz (16GBx1) | 1/2 Slot Free | Max 64GB
KEYBOARDSilent Membrane Keyboard with per-key RGB Backlight w/NKROSilent Membrane Keyboard with per-key RGB Backlight w/NKROSilent Membrane Keyboard with per-key RGB Backlight w/NKRO
CONNECTIVITYRear side:
- DC-in
- AQUA X Glow Connector
- Gigabyte LAN Port
- HDMI 2.1
- Thunderbolt™ 4 / USB

Type-C (Gen3.2 Gen 2) with 100 Watt PD
charging (Display Port Alternate)
-Mini Display Port

Right side:
- USB Type-A 3.2 Gen1 5Gbps x 2
- Full-Size SD Card Reader
- Kensington Lock

Left side:
- 3.5mm UAJ Jack
- USB Type-A 3.2 Gen 1 5Gbps
- USB Type-C 3.2 Gen 1 5Gbps 		Rear side:
- DC-in
- AQUA X Glow Connector
- Gigabyte LAN Port
- HDMI 2.1
- Thunderbolt™ 4 / USB

Type-C (Gen3.2 Gen 2) with 100 Watt PD
charging (Display Port Alternate)
-Mini Display Port

Right side:
- USB Type-A 3.2 Gen1 5Gbps x 2
- Full-Size SD Card Reader
- Kensington Lock

Left side:
- 3.5mm UAJ Jack
- USB Type-A 3.2 Gen 1 5Gbps
- USB Type-C 3.2 Gen 1 5Gbps 		Rear side:
- DC-in
- Gigabyte LAN Port
- HDMI 2.1
USB Type-C (Gen3.2 Gen 2) with 100 Watt PD charging
-Mini Display Port

Right side:
- USB Type-A 3.2 Gen1 5Gbps x 2
- Full-Size SD Card Reader
- Kensington Lock

Left side:
- 3.5mm UAJ Jack
- USB Type-A 3.2 Gen 1 5Gbps
- USB Type-C 3.2 Gen 1 5Gbps
THUNDERBOLT 4 DISPLAY OUTPUT CONNECTIVITY- Thunderbolt™ 4 / USB Type-C
(Gen3.2 Gen 2) with 100 Watt PD charging
( With Display Port Alternate Mode)		- Thunderbolt™ 4 / USB Type-C
(Gen3.2 Gen 2) with 100 Watt PD charging
( With Display Port Alternate Mode)
USB Type-C (Gen3.2 Gen 2) with 100 Watt PD charging
AQUA GLOW X COOLER CompatibleCompatibleNot Compatible
COMMUNICATIONGigabyte LAN
Intel Wi-Fi 6e AX211 802.11 a/b/g/n/ax +
Bluetooth 5.3		Gigabyte LAN
Intel Wi-Fi 6e AX211 802.11 a/b/g/n/ax +
Bluetooth 5.3		RZ616/AW-XB591NF Wi-Fi 6e AX211 802.11 a/b/g/n/ax +
Bluetooth 5.3
AUDIOBuilt-in 2 speakers | 2W each
Digital Microphone support		Built-in 2 speakers | 2W each
Digital Microphone support		Built-in 2 speakers | 2W each
Digital Microphone support
OPERATING SYSTEMWindows 11 HomeWindows 11 HomeWindows 11 Home
BATTERY80 Wh lithium polymer battery (screwed internally)80 Wh lithium polymer battery (screwed internally)80 Wh lithium polymer battery (screwed internally)
AC ADAPTER420W Adapter420W Adapter280W Adapter
DIMENSIONS356.7*254.7* 27.7mm
2.6kg		356.7*254.7* 27.7mm
2.6kg		356.7*254.7* 27.7mm
2.6kg
WEBCAMWindows Hello 4.0 Webcam
FHD + IR Dual Sensor		Windows Hello 4.0 Webcam
FHD + IR Dual Sensor		Windows Hello 4.0 Webcam
FHD + IR Dual Sensor
WARRANTY2 Year Manufacturer Warranty (6 Months Internal Battery)2 Year Manufacturer Warranty (6 Months Internal Battery)2 Year Manufacturer Warranty (6 Months Internal Battery)
